DPF Cleaning machines:

Dig into the details about each piece of equipment. Each one is Designed & Built in the USA. Manage your fleet’s aftertreatment servicing in-house for a change.

Harness the Power of Water to Clean DPFs FAST using the Filtertherm® Computer Guided Aqueous DPF Cleaning Machine.

THE AQUEOUS DPF CLEANING MACHINE

BY FILTERTHERM®

Item # FTM 1100

The Aqueous DPF Cleaning Machine offers fast, computer-controlled cleaning for all sizes and types of filters – including odd-shaped light-duty and off-road systems without the need to cut the units open.

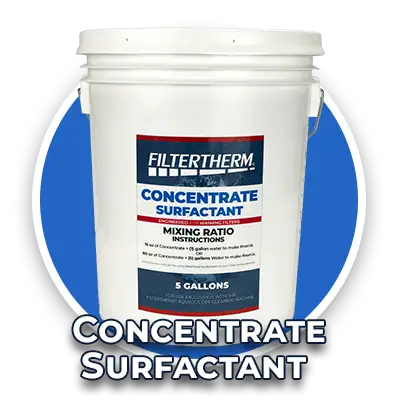

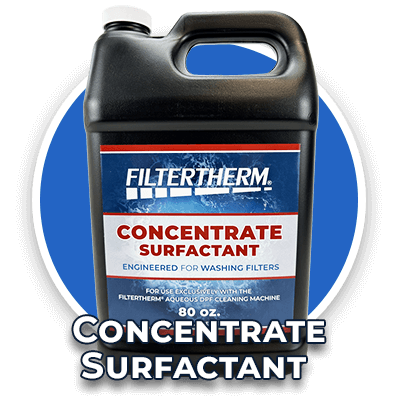

  • Pre-soak station for application of proprietary surfactant that embodies particles & loosens debris.
  • Edge-to-edge cleaning to flush debris from the filter with 600 gallons of recirculated water in a self-contained, dual-filter system.
  • Continuous low-pressure / high-volume water stream allows water to navigate around cell wall structures.
  • The non-destructive cleaning process does not compromise precious metals inside the filter.
  • Made in the USA!

Use our ROI tool to see how quickly you can start seeing savings with the Aqueous DPF Cleaning System.

SPECS:
Equipment Dimensions: 96” W x 48” D x 96” H (includes filter tank & control panel)
Shop footprint: 120” W x 78” D x 96” H (with clearance for the doors), leave 12” to 18” from the wall.
Electrical: 208VAC 3 phase, 30A GFCI protected breaker.

Adapters: Each Aqueous machine comes standard with an adapter set for filters with smaller size inlets, an extension hose, and a heavy-duty aluminum stand for odd-shaped DOCs.

The Filtertherm® Drying Cabinet quickly dries out Aqueous-Cleaned DPFs & DOCs often in 20 minutes or less.

THE DRYING CABINET

BY FILTERTHERM®

FTM 2000 (SINGLE Element) – FTM 2001 (DUAL Element)

The Filtertherm® Drying Cabinet is a turnkey solution for drying filters super fast with heated, high-velocity air.

  • The Quickest: Completely dries most Aqueous-cleaned filters in 20 minutes or less.
  • Most Versatile: Accommodates DPFs up to 24″ in height and up to 18″ in diameter.
  • Profitable: The ultimate competitive advantage in the diesel repair & cleaning market.
  • Compact: Requires minimal shop space & the machine is easy to operate.
  • American-Made: Designed and manufactured in Redding, CA, USA.

Available only as part of the fast and efficient Aqueous DPF Cleaning System.

SPECS:
Equipment Dimensions: 36” W x 44” D x 80” H
Shop Footprint: 64” W x 72” D x 80” H (clearance for the doors), leave 18” from the wall. Recommend venting hot air outside.
Electrical: FTM2000 (Single Element): Requires (2) 40 Amp circuits of 208VAC, 3 Phase.
FTM2001 (Dual Element): Requires (1) 40 Amp & (1) 60 Amp circuit of 208VAC, 3 Phase.

Adapters: The Drying Cabinet comes standard with 2 riser sets: a 12” diam and 18” diam.

There is also a Light Duty Dry-Out Kit available for drying filters with smaller, off-axis openings such as DOCs (upgrade sold separately).

The Filtertherm® Inspection Table is part of both the Thermal & Aqueous DFP cleaning methods – inspecting & benchmarking before & after each cleaning.

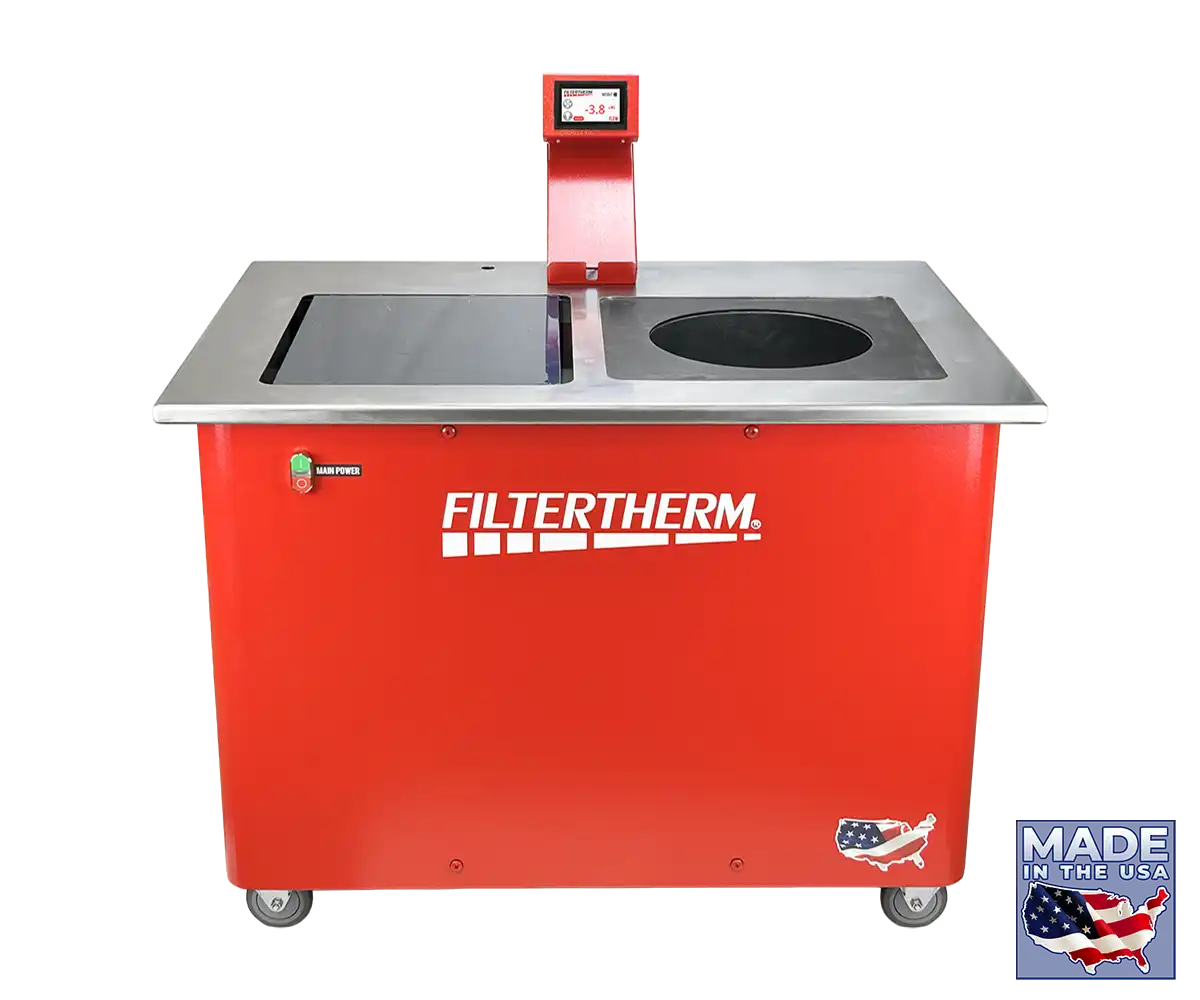

DPF INSPECTION TABLE

BY FILTERTHERM®

Item # FTM 8003

The Filtertherm® Inspection Table is an all-in-one inspection station that measures the DPF flow rate and weight of a filter to determine how much soot/ash is present before and after the cleaning cycle.

This versatile unit is available as part of both the Aqueous DPF Cleaning & Thermal DPF Cleaning packages.

  • Use the scale and pressure display to measure the filter’s weight, along with DPF flow readings before and after cleaning.
  • Ergonomic height to transfer heavy filters more safely from the table to the cleaning machine and back again.
  • Equipped with a powerful light that allows you to inspect the DPF for cracks.
  • Comes with adapter rings for different diam filters, & a holder for the wire rods used for pin testing.
  • Durable and portable: Has a stainless-steel top, powder-coated steel body, and large, heavy-duty lockable wheels.
  • Comes with a USB charging port and a shelf for your smart device.
  • Made in the USA!

The measurements and data collected by this machine should always be documented. We’ve developed a custom software tool for this very purpose. Check out FilterTrak. Free demo available.

SPECS:
Equipment Dimensions: 46” W x 33” D x 35” H (47” H including display head).
Shop footprint: 48” W x 36” D x 36” H (locking caster wheels).
Electrical: 120V 1 phase 19A power required.

The Thermal DPF Cleaning System

*The optional BLOW OUT KIT is also available.

The Filtertherm® DPF Thermal Oven was engineered to perform like no kiln can, designed & built specifically for cleaning MULTIPLE DPFs at once.

THE DPF THERMAL OVEN

BY FILTERTHERM®

Item # FTM 24403A

The DPF Thermal Oven is designed specifically for DPF cleaning via “baking”, however, this is not some repurposed kiln. Purpose-built for all types of fleets and shops and made to accommodate and clean multiple filters of varying sizes and shapes.

  • Extra Large Capacity to bake 6-8 filters at once with a stainless-steel grate (to protect the oven floor).
  • Cool-Touch Technology: outside of the unit remains safe to touch while baking.
  • Smart-Touchscreen controls take the guesswork out of DPF cleaning with preprogrammed settings for OEM, aftermarket, and retrofit filters.
  • Standard safety features include a temp-controlled door lock, auto shutoff for over-temp conditions, and employee passcodes to prevent unauthorized users.
  • Built in the USA to industry standards for quality and safety.

Use our ROI tool to see how quickly you can start seeing savings with the Thermal DPF Cleaning System.

SPECS:
Shop footprint: 70” H x 64” W x 98” D (door open)
Internal dimensions: 34” H (w/stainless steel grate) x 36” W x 34” D
Electrical: 208, 220, 240v, 3 phase power required.

The Filtertherm® Pulse Cleaner is a self-contained solution for de-ashing and blowing out DPFs using a high-velocity, low-pressure air pulse.

PULSE CLEANER

BY FILTERTHERM®

Item # FTM 9981

The Filtertherm® Pulse Cleaner uses a high-velocity, low-pressure air pulse to de-ash and blow out DPFs. Works seamlessly with the Filtertherm® DPF Thermal Oven.

  • Fast process time – approx. 20 minutes or less.
  • The self-contained cleaning system prevents contaminants from escaping into ambient air during operation.
  • Automated controls for simple and easy operation.
  • Accommodates many different sizes of OEM, aftermarket, and retrofit filters: 11-15” diam. and 11.5 – 20” length (adapters available for other sizes).
  • Provides a quick return on investment (ROI) for professional DPF cleaning shops like yours.
  • Made in the USA!

This unit is available as part of the Thermal DPF cleaning package.

SPECS:
Equipment Dimensions: 34” W x 44” D x 79” H
Shop Footprint: 34” W x 72” D x 79” H (with the doors open)
Electrical: 115v single phase 15 amp power required
Other: Dry compressed air source of 90 PSI minimum at 4 CFM

The Filtertherm® Inspection Table is part of both the Thermal & Aqueous systems – used for inspecting & benchmarking before & after each cleaning.

DPF INSPECTION TABLE

BY FILTERTHERM®

Item # FTM 8003

The Filtertherm® Inspection Table is an all-in-one inspection station that measures a DPF’s flow rate and the weight of a filter to determine how much soot/ash is present before and after the cleaning cycle.

This versatile unit is available as part of both the Aqueous DPF Cleaning & Thermal DPF Cleaning packages.

  • Use the scale and pressure display to measure the filter’s weight, along with DPF flow readings before and after cleaning.
  • Ergonomic height to transfer heavy filters more safely from the table to the cleaning machine and back again.
  • Equipped with a powerful light that allows you to inspect the DPF for cracks.
  • Comes with adapter rings for different diam filters, & a holder for the wire rods used for pin testing.
  • Durable and portable: Has a stainless-steel top, powder-coated steel body, and large, heavy-duty lockable wheels.
  • Comes with a USB charging port and a shelf for your smart device.
  • Made in the USA!

The measurements and data collected by this machine should always be documented. We’ve developed a custom software tool for this very purpose – check out FilterTrak.

SPECS:
Equipment Dimensions: 46” W x 33” D x 35” H (47” H including display head).
Shop footprint: 48” W x 36” D x 36” H (locking caster wheels).
Electrical: 120V 1 phase 19A power required.

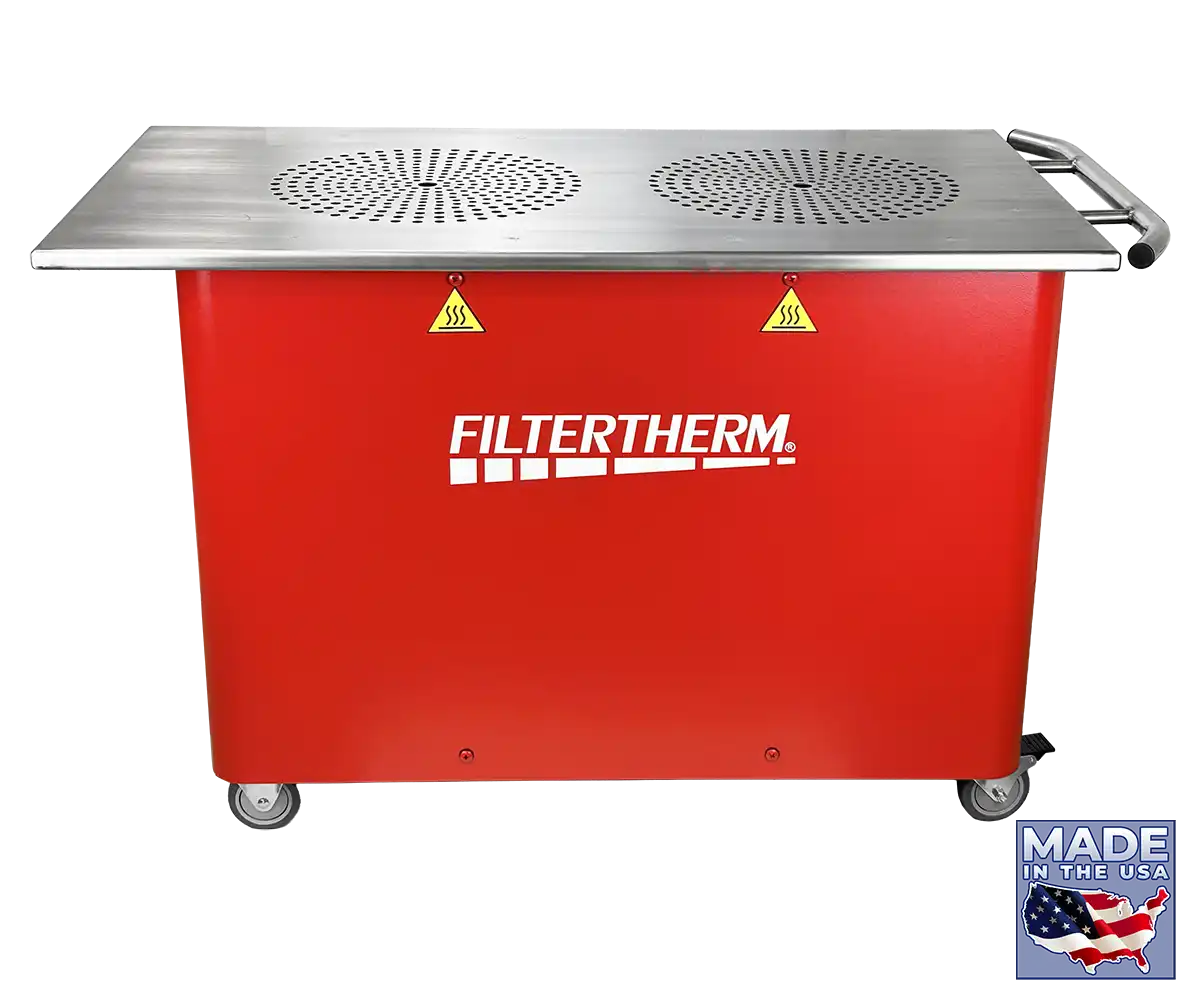

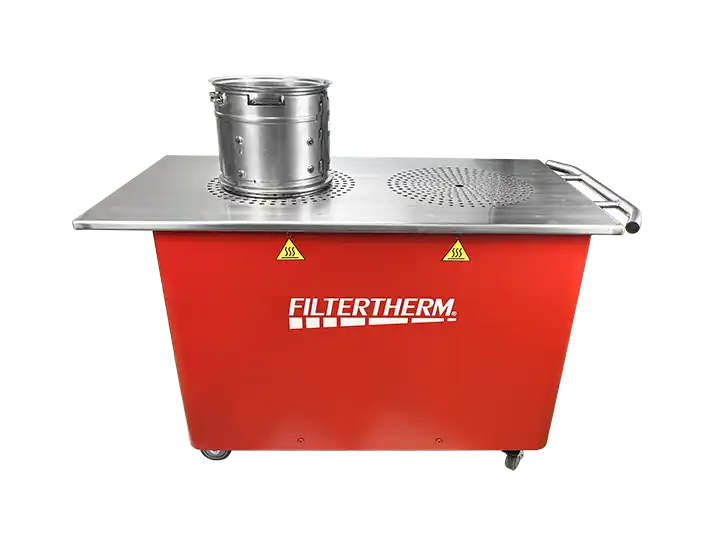

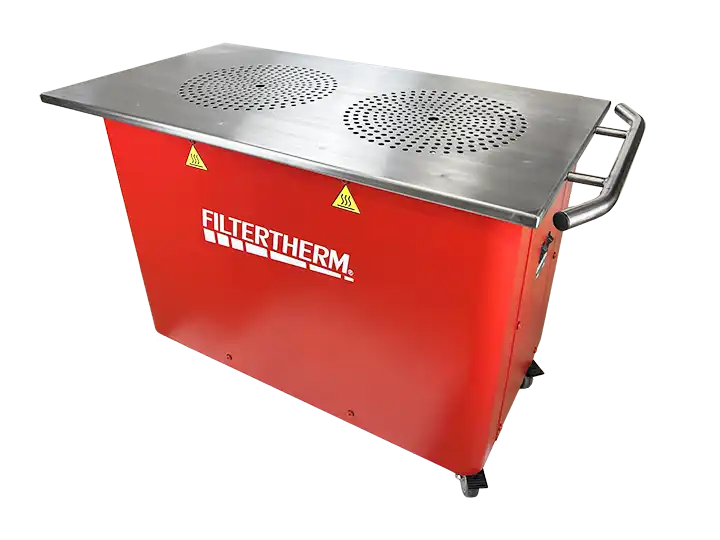

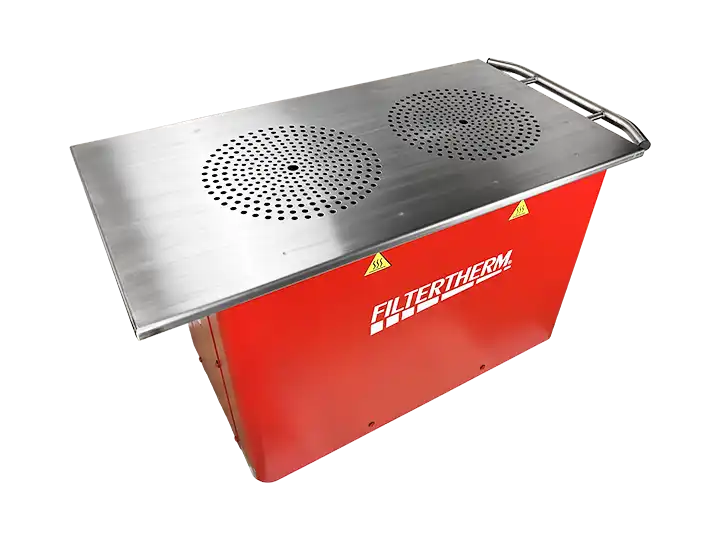

The Filtertherm® DPF Cooling Cart is designed to reduce the waiting time for hot filters to cool down after baking

DPF COOLING CART

BY FILTERTHERM®

Item # FTM 9001

The Filtertherm® DPF Cooling Cart is a great solution to help reduce the typical time between pulling, cleaning, and reinstalling a filter. Waiting for hot filters to cool down after baking can seem to take forever; rushing the process can put the filter at risk.

  • Decreases the cooling time by 2 – 4 hours (depending on the environmental conditions & filter type).
  • Simple to operate.
  • Easy to move on lockable heavy-duty casters.
  • Ergonomic height: easily slide filters from the oven to the cart.
  • Durable and Portable: Stainless steel top and powder-coated steel body.
  • Proudly Built in the USA.

Use our ROI tool to see how quickly you can start seeing savings with the Thermal DPF Cleaning System.

SPECS:
Shop footprint: 34” H x 54” W x 27.25” D
Electrical: 110v single phase power required.

The Filtertherm® Dust Collector Kit consists of a compact blow-out table that connects to a portable cyclone dust collector.

Dust Collector KIT

BY FILTERTHERM®

Item # FTM 8004

This blow-out table and dust collector kit is for shops with space demands and also makes a great addition to larger DPF cleaning operations.

  • Easily portable to move from location to location (on casters).
  • Ergonomic height for better workplace safety and ease of use.
  • An industrial fan motor that provides ample CFM.
  • High-Efficiency Cyclone (over 99% separation).
  • 22-gallon drop-down dust bin with liner bag holder and fill-level viewing window.
  • Hospital-grade HEPA filtration
  • Vacuum hose port for easy cleaning.

This compact unit is an optional add-on for the Thermal DPF cleaning package.

SPECS:
Shop footprint: 65” H x 73” W x 27.25” D.
Electrical: 115v single phase power required. Note: Each unit uses its own electrical outlet.

FILTERTHERM ROI TOOL

Filtertherm DPF Cleaning Equipment

Please answer a few questions

Number of vehicles in your fleet with emissions systems?
Cost per DPF cleaning with current service provider?
How many times per year do you clean each DPF?

Choose your DPF Cleaning Equipment system


$0

What does this mean for you?

Estimated number of filters cleaned annually for your fleet
0
Approx. Annual Cost for DPF cleaning with current service provider
$0

Months for Positive ROI

0

Monthly savings (after positive ROI)**
$0
Annual savings (after positive ROI)**
$0

**For more information on this ROI Tool view or download the info sheet.

NOTE: This ROI Tool is designed for fleet applications.

If you are looking to use Filtertherm DPF Cleaning equipment for your repair shop or business see our ROI Tool at rep.direct.

For reference the MSRP prices on our DPF cleaning packages are as follows:

AQUEOUS DPF Cleaning Package

MSRP $82,500.00 USD

Includes the Aqueous Cleaning Machine, Dryer, and Inspection Table.
Filtertherm Aqueous DPF Cleaning System

THERMAL DPF Cleaning Package

MSRP $51,000.00 USD

Includes the DPF Thermal Oven, Pulse Machine, Inspection Table, and Cooling Cart.
Filtertherm Thermal DPF Cleaning System
